DIY UV Printer

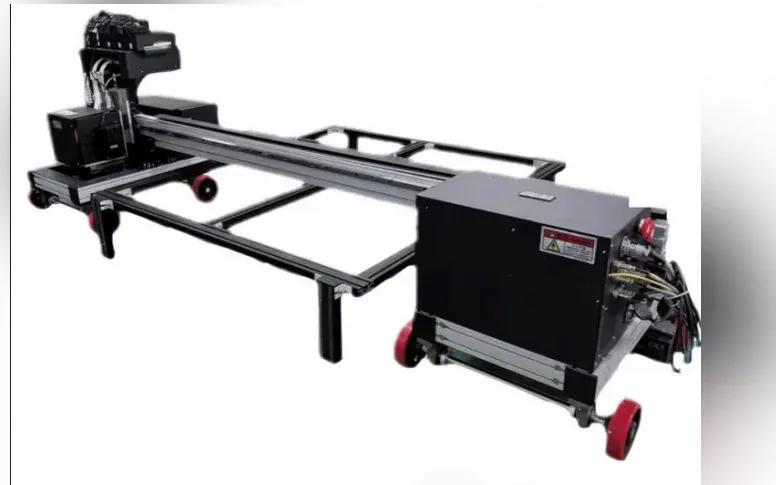

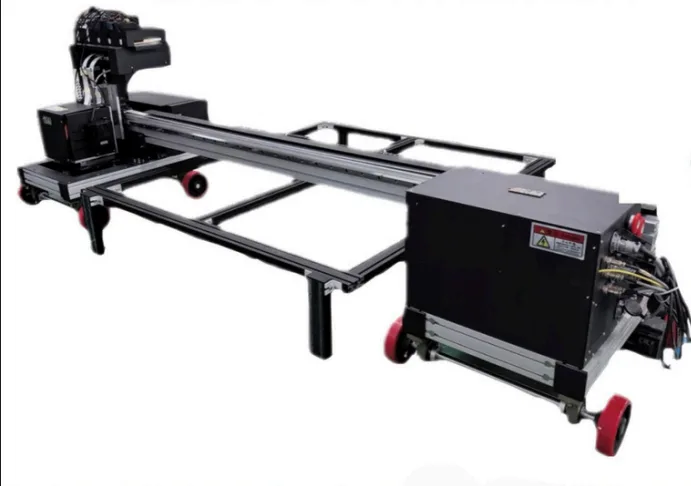

Modular gantry printer with unlimited custom length — start a printing business from one room
A modular-assembly flat-panel printer for acrylic enclosures, decorative painting, metal, PVC, glass signs, handicrafts and sheet metal. Width and custom length are not limited, with UPS-ready power-off continuation.

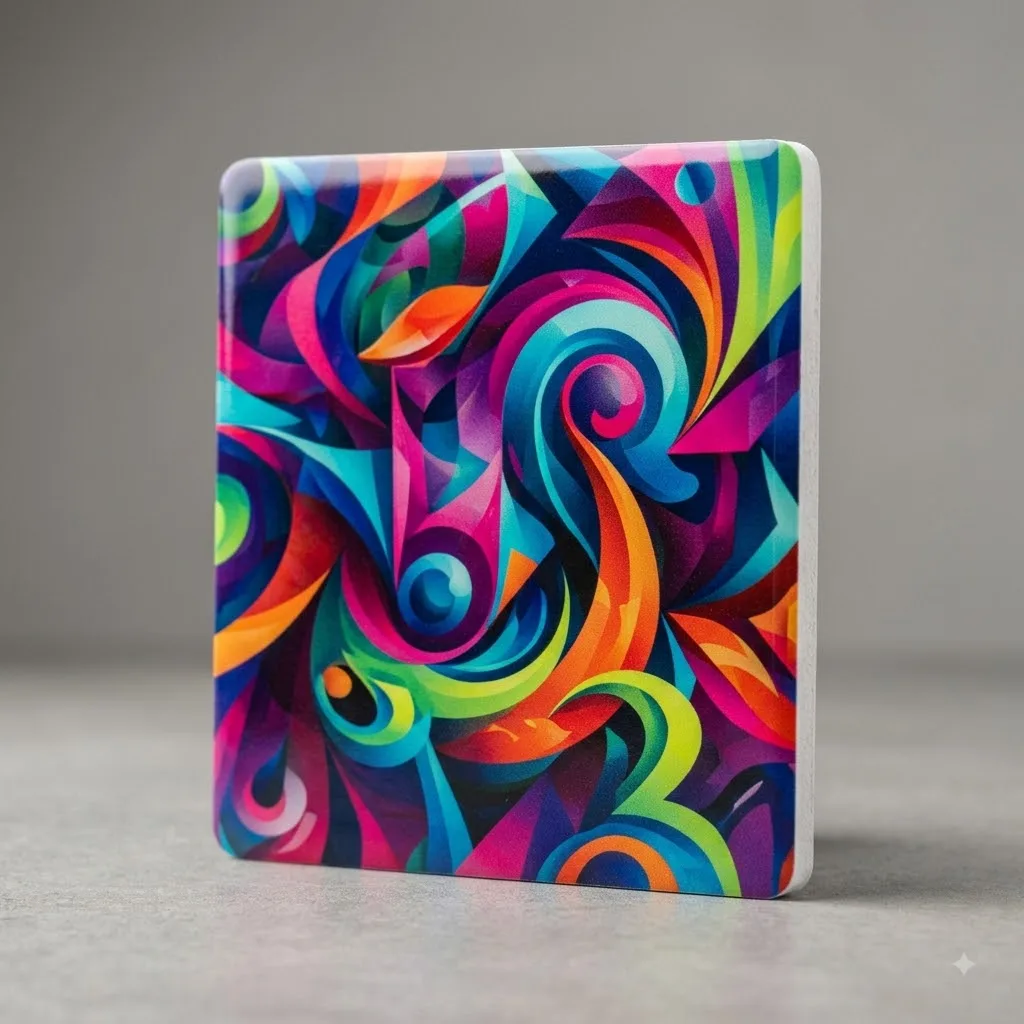

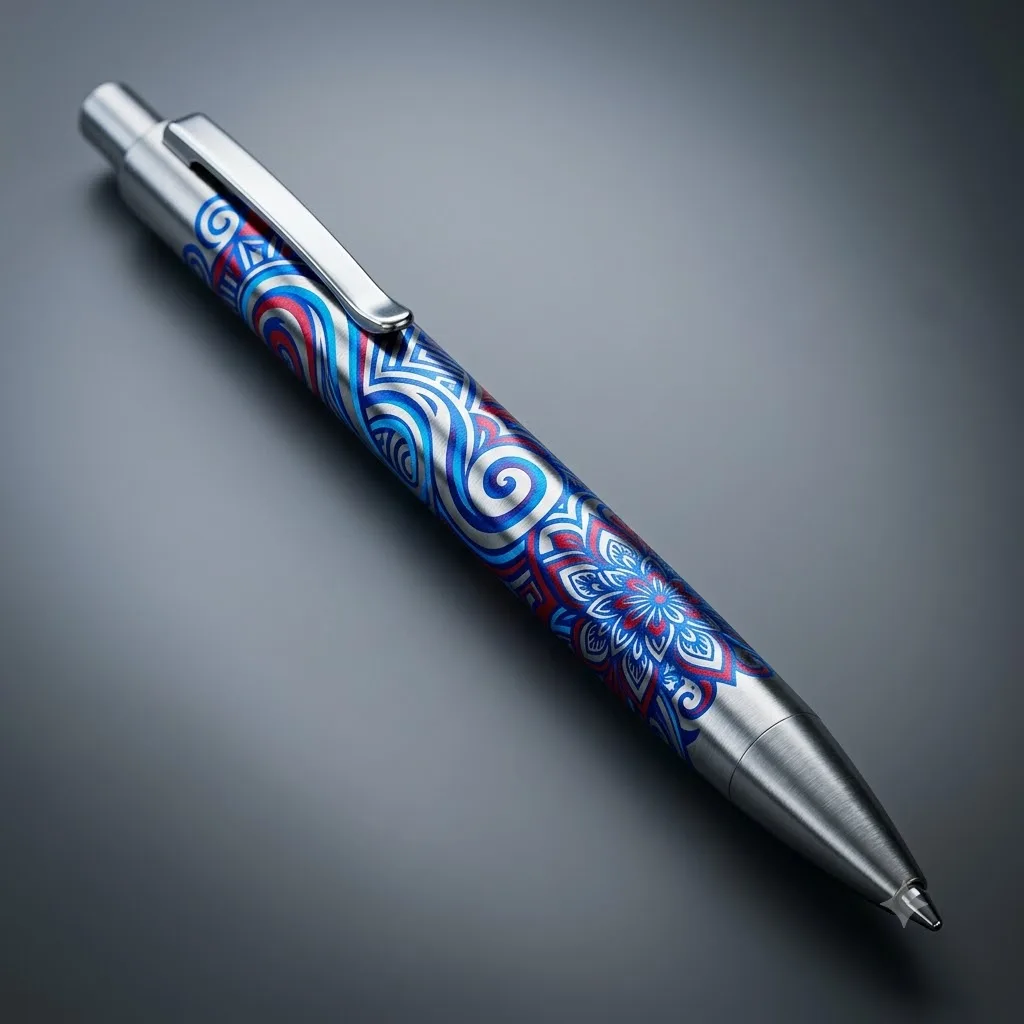

Prints on
Full specifications
- Color mode
- CMYKWGO
- Print size
- Width and customized length are not limited
- Curb weight
- About 100kg
- Product name
- DIY-UV flat panel printer
- RIP software
- Ruicai/Montai
- Assembly mode
- Modular assembly
- Printing speed
- 5-12 square/h — different configurations have different speeds
- Use the nozzle
- Epson tx800/i1600/i3200
- Equipment noise
- Standby < 20DBA, exercise < 50DBA
- Print interface
- USB2.0/USB3.0/Gigabit network port
- Print thickness
- 0~150mm
- Operating system
- WIN7 / WIN10
- Print resolution
- 720x360dpi, 720x720dpi, 720x1080dpi, 720x1440dpi
- Ink certification
- National inspection qualified (SCLO31002363002E), CE certification
- Ink supply system
- Drop hydraulic ink supply, liquid level ink shortage sensing ink Box, white automatic stirring ink cartridge
- Mode of operation
- Touch screen control operation, touch screen computer (optional)
- Printing accuracy
- 720*720/1440*720/1440*1440
- Operating language
- Chinese, English, Polish, French and other languages
- Printable material
- Acrylic enclosure decorative painting, metal, PVC, glass logo signs, crafts, sheet metal, etc
- Painting technology
- High Precision Piezoelectric Inkjet Technology
- Quality certification
- 3500*700*800MM (different sizes of customized models)
- Power off battery life
- Can be connected to UPS for continuous printing
Ask about this machine
Quote-based pricing — tell us your use case and we'll get back to you the same business day.
