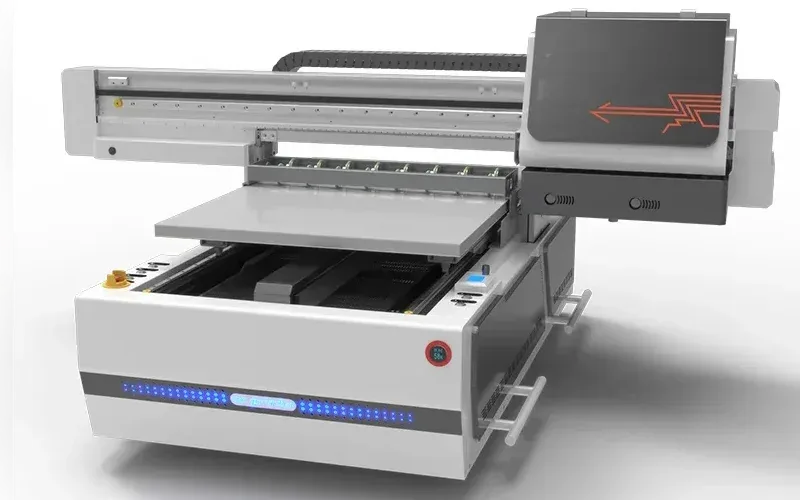

6090 Plus UV Printer
Servo-driven flagship with negative-pressure ink supply and lifetime after-sales service
The premium edition of the 6090 line: alloy platform, silent track, negative-pressure high-speed ink supply, and a high-precision servo motor throughout — built for shops that print all day, every day.
Prints on
Full specifications
- Lift
- Print head lifting
- Model
- 6090 PREMIUM UV PRINTER
- Power
- AC220/110,50Hz~60Hz
- Weight
- 190KG
- Protect
- Automatic detection and collision avoidance
- Maintain
- Automatic cleaning / manual cleaning
- Platform
- Alloy or tempered glass platform (optional)
- Interface
- Ethernet
- Antifreeze
- heating system(optional)
- Ink supply
- Automatic negative pressure ink supply system (optional)
- Print head
- Xp600 double head, xp600 triple head, i1600 triple head, Ricoh g5i triple head (optional)
- Print size
- 60*90cm
- File format
- tff, bmp, pdf, eps, jpg
- Print color
- CMYK + W + varnish
- Servo motor
- High precision servo motor
- Color output
- White, color, and varnish
- Print height
- 0~200mm (customizable)
- Anti blocking
- Original ink cartridge system automatic mixing
- Curing system
- LED UV灯
- Print quality
- 720dpi/1440dpi/2880dpi/5760dpi/11520dpi
- Equipment size
- 1.37*1.7*0.76m
- Extra purchase
- CCD visual positioning, cylinder printing fixture, UV DTF film
- Output software
- RIIN
- Special effects
- Relief / varnish
- Dynamic printing
- Automatically change code, name and date system
- Operating system
- Xp/Win7/Win10
- Work environment
- Temperature 15 ~ 35, humidity 20 ~ 30%
- Height adjustment
- Manual adjustment
- Transmission mode
- X-axis single guide rail + motor, Y-axis guide rail + motor
- Printing technology
- Variable ink drop Technology
- Number of print heads
- 2~3 (optional)
- Automatic continuation
- The number of times can be set to automatically repeat printing
Ask about this machine
Quote-based pricing — tell us your use case and we'll get back to you the same business day.
