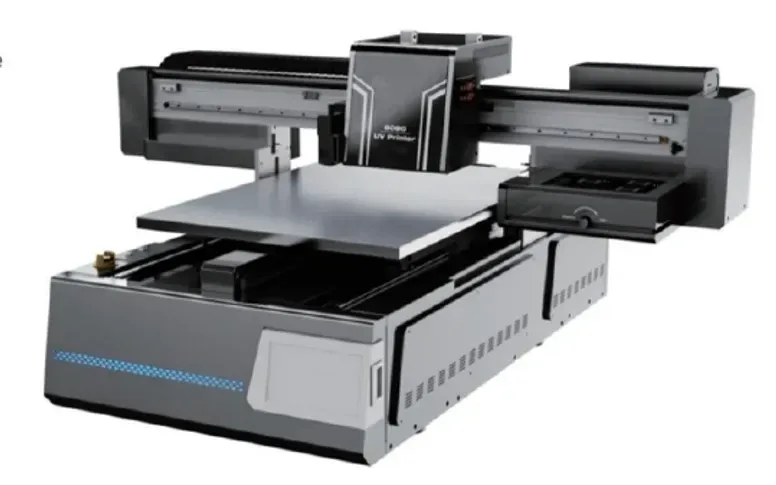

6090 UV Printer
All-steel frame proven over 10 years, ultra-precision 3.5PL minimum ink drop
The all-steel structure frame ensures machine accuracy — the steel crossbeam has run for more than 10 years without deformation. A decade of in-house ink-system R&D means smoother ink supply and richer, more accurate color.
Prints on
Full specifications
- Ink
- UV ink
- Model
- 6090
- Power
- AC220/110,50Hz~60Hz
- motor
- High precision motor
- weight
- 140.5KG
- Ink stack
- Automatic rising-lowering
- Interface
- High speed USB
- Ink supply
- Siphon ink supply system
- Print Size
- 60*90cm
- Print head
- Epson print head
- Print mode
- Unidirectional/Bidirectional
- Print color
- CMYK+W+varnish
- environment
- Temperature 15-35, humidity 20-30%
- file format
- Tif, BMP, PDF, EPS, JPG
- maintenance
- Automatic cleaning/manual cleaning
- Color output
- White, color, and varnish
- control deck
- The integrated console is easy to operate
- transmission
- X-axis guide rail+motor, Y-axis guide rail+motor
- Anti blocking
- Original ink cartridge system with automatic mixing
- Curing system
- LED UV lamp
- Lift function
- Head lifting and lowering
- height adjust
- Active height limit/manual adjustment
- print quality
- 720dpi/1440dpi/2880dpi/5760dpi/11520dpi
- Equipment size
- About 1.4 * 1.56 * 0.76m
- Output software
- RIIN
- Printing height
- 0~150mm (customizable)
- Special effects
- Relief/glossy oil
- freeze-proofing
- Heating system (optional)
- operating system
- Xp/Win7/Win10
- Printing platform
- Glass/alloy suction platform (optional)
- Printing technology
- Variable ink droplet technology
- Number of print heads
- 2-3 (optional)
- automatic rising-lowering
- Automatic induction lifting
Ask about this machine
Quote-based pricing — tell us your use case and we'll get back to you the same business day.
